Section Steel Shear with Punching Machine Peddibasic No. 1
Combined Section and Flat Shear with Punch Unit
Technical Data
Flat bar shear
| cuts flat bar with minimum distortion | up to mm | 300 × 12 |
| angle iron, 45° cut | up to mm | 50 × 5 |
| blade cut length | mm | 310 |
| work height | mm | 838 |

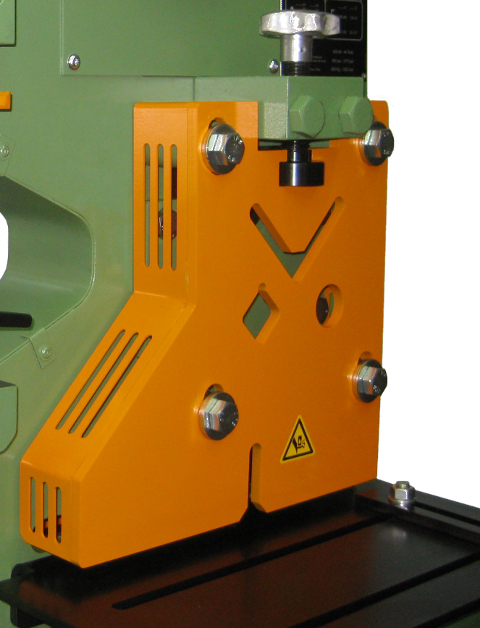

Section and bar stock shear
| cross section | max. mm² | 1230 |
| stroke, infinitely adjustable | mm | 10 - 32 |
| cuts with standard blades 90°: | ||
| angle iron, 90° cut | up to mm | 80 × 8 |
| rounds | mm | 32 |
| squares | mm | 30 |
| cuts with special blades: | ||
| channels, 90° cut | up to mm | 80 |
| I-beams, 90° cut | up to mm | 100 |
| work height (to centre of blades) | mm | 1068 |
punch unit
| rated capacity | kN | 400 |
| stroke, infinitely adjustable | mm | 10 - 32 |
| number of strokes, 20 mm | min⁻¹ | 23 |
| throat depth | mm | 176 |
| work height | mm | 1068 |
| punches with standard punching attachment | up to mm | Ø 31 in 10 |
| punches with oversize punching attachment | ||
| • SV 58 / 65 | up to mm | Ø 58 in 5 |
| • SV 58 / 65 | up to mm | Ø 65 in 4.5 |
Machine specifications
| connected load | kW | 3 |
| charge of hydraulic fluid | l | 30 |
| net weight incl. fluid, (with pallet) | appr. kg | 550 |
| machine dimensions | L×W×H cm | 67×62×160 |
| dimensions of export case | L×W×H cm | 75×70×180 |
| ref. no. | 40785 |
All performance data refers to a material strength of 450 N/mm². Subject to design changes.
Scope of Delivery
- flat shear blades, 310 mm long, also for shearing angle iron 45°
- material support table on the flat bar shear
- section shear station for shearing angle iron 90° rounds and squares

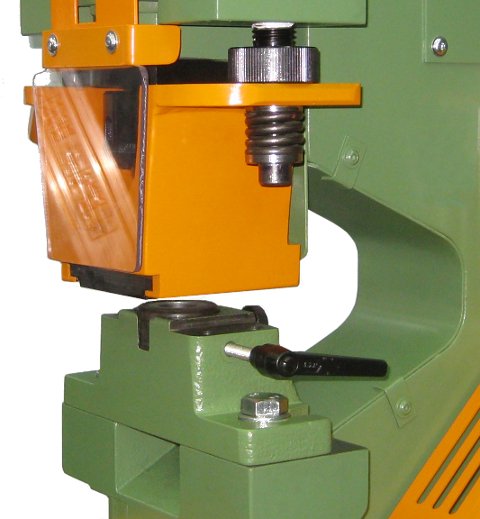

- quick-change punching attachment up to 31mm Ø, for punches and dies of the green series
- swing-away stripper, height-adjustable, with exchangeable stripper plate
- foot switch and electrical controls
- connecting socket for remote tripping, e. g. electrical contact length stop
- hydraulic power-pack with a charge of fluid
- three-phase A.C. motor
40785
All performance data are based on a tensile strength of 450 N/mm². We reserve the right to make design alterations without notice.
Applications in steel construction
The Peddibasic No. 1 combines a steel section shear and a punching machine in one unit, covering two basic steel-preparation operations at a single workstation. It cuts flat, round and angle steel to length and, in the same setup, sets holes for bolted joints, shortening setup and transfer routes in the workshop.
Typical applications
- Cutting flat steel, round steel and angle steel to length
- Punching flat steel and cleats for bolted joints
- Cutting and punching smaller connection parts at the same station
- Preparing gusset plates and fastening cleats
- Workshop-level preparation of sections for assembly
Which businesses use it
Used in locksmith shops, metal fabrication, smaller steel construction companies and repair workshops as a compact combination workstation.
Frequently asked questions
What does a combined steel section shear with punching machine do?
It combines two functions in one machine: shearing section and flat steel to length and punching holes. This allows cutting and punching operations to be carried out at a single workstation without changing machines.
Which workpieces is the machine suited to?
Typical workpieces are flat steel, round steel and angle steel, which are cut to length and provided with holes for bolted joints. It is particularly suited to the workshop-level preparation of smaller connection and fastening parts.
What advantage does the combination offer over single machines?
A shear and a punch in one unit save floor space and avoid moving the workpieces between two machines. This is an advantage above all for changing small batches and in workshops with limited space.
