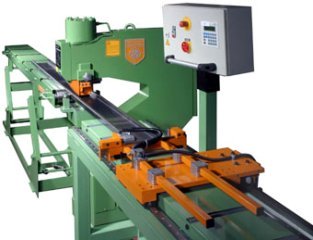

Peddinghaus CNC operated linear gauging track
for faster and more accurate punching or shearing
Technical Data
| measuring length: | up to 3,000mm and 6,000mm | |
| roller width: | 300mm | |
| positioning accuracy: | 0.1mm |
All performance data refers to a material strength of 450 N/mm². Subject to design changes.
Scope of Delivery
- pneumatic workpiece clamp
- CNC control
- also for retro-fitting
Applications in steel construction
The CNC linear unit positions the section via a controlled feed in front of the punching or shearing tool. The control approaches each hole and cut position automatically, so that several operations per section run without re-placing the workpiece. This allows section series to be produced quickly and with consistent positional accuracy.
Typical applications
- Automatic approach to several hole positions along a section
- Continuous processing of long sections without repeated repositioning
- Series production of hole patterns for bolted connections
- Combined punching and shearing in a single positioned workflow
- Reduced cycle times for recurring section sequences
Which businesses use it
Used in structural and metal fabrication as well as in section and series production, where many hole patterns and cuts are required per component.
Frequently asked questions
What does the CNC linear unit do?
It feeds the section via a controlled drive and approaches each processing position automatically. Several holes or cuts per section are produced without the operator having to reposition each time.
Why does the linear unit shorten processing time?
Because the positions are approached automatically, manual measuring and repositioning are eliminated. For sections with many hole positions this results in a continuous workflow.
