Peddinghaus Through Pipe Punching Tool
Tube punching tool for 70-series tubes
- Tube punching tool
- for two different hole diameters
- Ø 27.0 mm and Ø 36.0 mm
- with two punching dies and centring stop

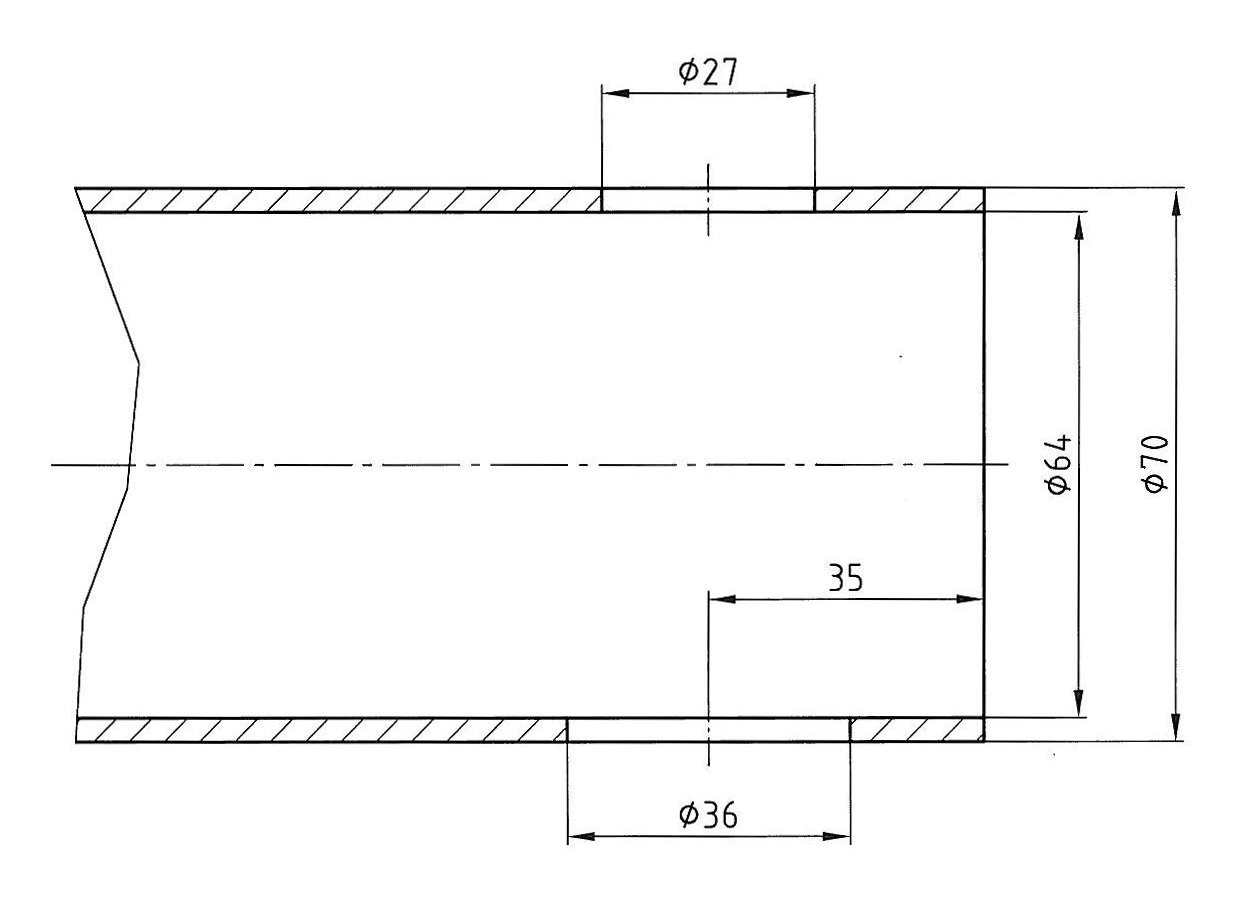

- for opposing hole arrangement
- Article No. P-40635 620 19 00
Applications in steel construction
This tube punching tool is matched to tubes of the 70 size and punches the hollow section to size in a single operation. It produces through-holes for bolted and plug-in connections without the tube having to be cut open or drilled individually. The tool's design for the fixed tube size ensures a consistent hole position in series production.
Typical applications
- Punching 70-size tubes for bolted connections
- recurring hole patterns on identical tube sections in series
- fastening and pass-through holes on posts and frame tubes
- connection holes for connectors and cross braces on the 70 section
- consistent hole position in repeated production of identical components
Which businesses use it
Used in steel construction, metalworking and metalwork shops as well as in frame and railing construction with 70-size tubes.
Frequently asked questions
Which tube size is the tool designed for?
This tool is specifically matched to tubes of the 70 size. The fixed design for one tube size ensures a consistent support and hole position, which is particularly important for recurring series parts.
When is a size-specific tube punching tool worthwhile compared to a universal one?
If predominantly one tube size is processed, a tool matched to it provides a reproducible hole position without retooling. For varying tube dimensions, an adjustable or through-punching tube tool is the more flexible choice.
