Peddinghaus Special Section Steel Blades
Special profile-steel blades

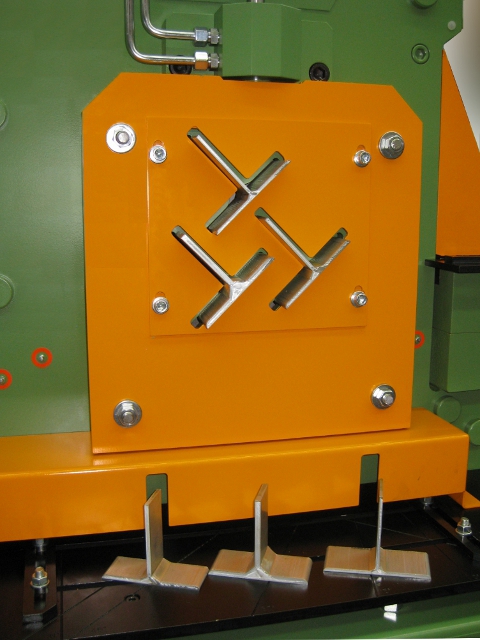

Example: model Peddimax No. 1

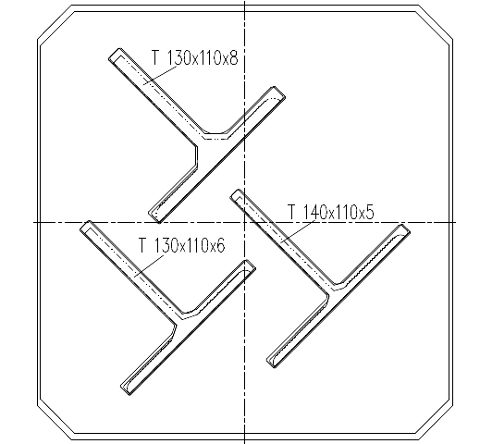

Special profile-steel blades, set, with three cutting openings for three aluminium T-profiles, complete with insertion and hold-down mask
Article no. 44600 606 13 00
Applications in steel construction
These special profile-steel blades are a special tool set for shearing aluminium profiles, designed for applications in facade construction. The set is fitted into the profile-steel shear and has several cutting openings, so that different aluminium T-profiles can be cut with the same blade set. The insertion and hold-down mask ensure a defined position of the profile during the cut.
Typical applications
- Cutting aluminium T-profiles to length for facade structures
- Shearing several profile cross-sections with one blade set via separate cutting openings
- Cutting aluminium profiles without chip removal as preparation for assembly
- Clean cut edges on facade substructure profiles
Which businesses use it
Used in facade construction as well as in metal and light-metal construction, where aluminium profiles are sheared to length.
Frequently asked questions
Why dedicated blades for aluminium profiles?
Aluminium profiles have different cross-sections and a different cutting behaviour than steel profiles. The special blades are matched to the respective aluminium T-profiles with suitable cutting openings as well as an insertion and hold-down mask, so that the cut stays clean and low-distortion.
Can several profiles be cut with one set?
Yes. The blade set has several cutting openings, three in the example, so that different aluminium T-profiles can be sheared without changing tools.
On which machine are the blades used?
The special profile-steel blades are run in the profile-steel shear, for example in the model Peddimax No. 1, and are supplied as a fully assembled set.
