Peddinghaus Punching Tool for Fence Production
CNC punching system with punching cassettes
CNC punching system with punching machine model Hydraulic 1250
Problem
Solution
- Punching machine Hydraulic 1250
- Punching cassette for 3 × slotted hole 14×35 in UNP 60×30

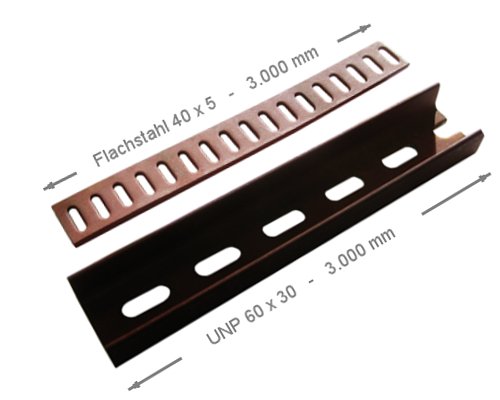

- Punching cassette for 6 × slotted hole 7×25 in flat steel 40×5
- CNC linear unit - measuring length 4,000 mm - with NC feed and control
Applications in steel construction
The punching tool for fence production is designed as a punching cassette for CNC punching systems. With the cassettes you create the hole patterns and openings required for fence elements in profiles and sheets, automatically and in a consistent position.
Typical applications
- Punching recurring hole patterns for fence posts and rails
- Creating openings for plug connections and fittings
- Punching profiles and sheets in fence and railing production
- Automated series production via the CNC punching system with cassette change
- Reproducible hole pattern across large quantities
Which businesses use it
Used in fence and gate system production, in metalworking, and in companies with series punching of profiles.
Frequently asked questions
What is a punching cassette in a CNC punching system?
A punching cassette is a pre-equipped tool unit that is inserted into the CNC punching system. It contains the punches and dies for a specific hole pattern, so that the tool can be quickly changed for different components.
What advantage does cassette punching offer in fence production?
Using the cassette, the required hole pattern is created automatically and always in the same position. This ensures dimensionally accurate, reproducible holes across large quantities and avoids individually marking out and punching each profile.
