Technical Data
| Model | 1 BR 4 / 2 | |
| part no. | 20127 | |
| plate | up to mm | 4 |
| rounds | up to mm | 10 |
| blade length | mm | 120 |
| net weight | kg | 10.5 |
| top blade | part no. | 20027 5 1000 |
| bottom blade | part no. | 20027 5 1001 |
All performance data refers to a material strength of 450 N/mm². Subject to design changes.
Scope of Delivery
- Rugged machine frame
- Blades of high grade tool steel, hardened and ground
- Ergonomic cutting geometry
- Infinitely adjustable hold-down
- Hand lever with safety spring

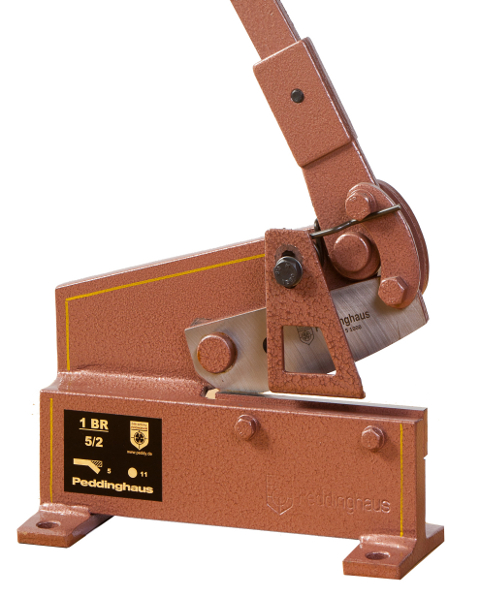

1 BR
All capacities refer to material with a tensile strength of 450 N/mm2. We reserve the right to make design alterations without notice.
Proven range of machines available in three sizes.
The operator has a clear view over the full blade length enabling work to be performed on layouted plate.
Applications in steel construction
Peddinghaus plate and round-bar shears cut plate, flat steel and round material in a single operation. They are used for cutting to length and trimming semi-finished material in the workshop, where fast straight cuts without chip removal are required. Depending on the version, flat, round and in some cases profile cross-sections can be sheared.
Typical applications
- Cutting flat steel and strip steel to length
- Cutting round steel and reinforcing bars
- Trimming sheet strips and sheet plates
- Preparing semi-finished material for further processing
- Straight cut-off cuts without sawing or flame-cutting rework
Which businesses use it
Used in locksmith shops, metal and structural fabrication and in steel trading for fast material cutting.
Frequently asked questions
Which materials can be cut with the shear?
Depending on the version, plate, flat and strip steel as well as round steel are cut. The permissible cross-sections depend on the punching force and the respective model.
What is the advantage over sawing?
Shearing cuts without chip removal and without heat input in a single stroke. It is suitable for fast straight cut-off cuts when cutting semi-finished material to length.
